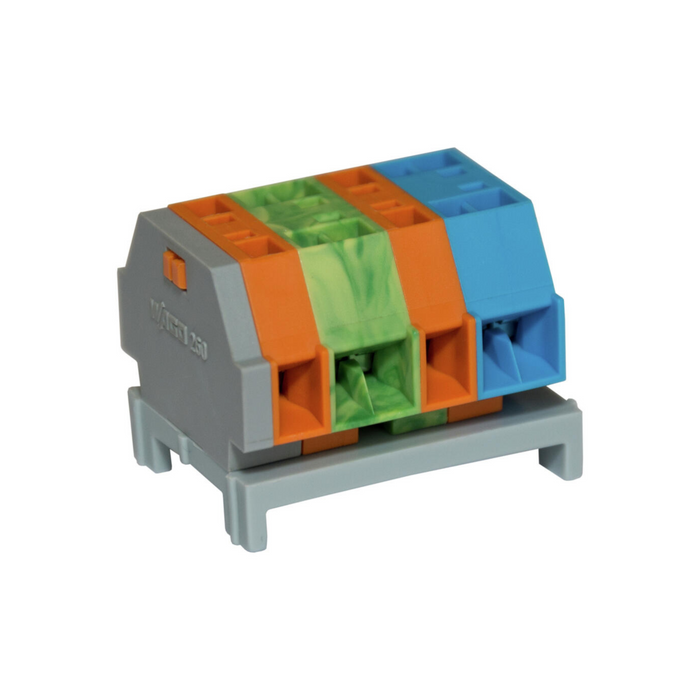

Wagobox®-Light Modular Terminal Block MTB-260-4 (0.08-1.5mm, 18A, L1+L+N+E)

Wago 4-Pole, 12-Port Modular terminal block with CAGE CLAMP® connection, fixed to carrier for mounting in a Wagobox®- Light junction box Operating tool sold separately Compliant with BS7671 17th Edition Wago connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th Edition. Installers can be totally confident that using Wago connectors enables them to follow 'best practice' procedures and fully comply with the most up to date safety criteria.

Part No. MTB-2604

Number of Ports 12 Side-entry
Number of Poles 4 (L1+L+N+E)
Colours Orange, Green+Yellow, Blue
Conductor sizes 0.08mm² - 1.5mm² Solid or Stranded Core
Connection method CAGE CLAMP®CONNECTION
Voltage rating 400V
Measured shock voltage 6 kV
Current rating 18 A
Weight 10g
Dimensions Length 25mm, Width 29mm, Depth 17mm
Strip length from 8 - 9 mm
Approvals ABS,CCA,CSA,DNV,GL,KEMA,KR,LR,PRS,RMR,UR
